Mating connector with pins
FMS connector green MALE 12 Pos incl. 12 pins€9,48 EUR€7,90 EUR each
incl. 20% VAT excl. VATFMS Y-Splitter 1x Male to 2x Female, 20 cm
FMS Y-Splitter 1x Male to 2x Female, 20 cm
Regular price
€35,88 EUR€29,90 EUR
Unit price
€0,00
per
Shipping to Austria:
€8,40€7,00
incl. VAT
excl. VAT
Free from
€120,00€100,00
incl. VAT
excl. VAT
order value after discounts.
Shipping details
In stock – ready to ship
Shipping from Austria
incl. 20% VAT
excl. VAT · Delivery country: Austria
Couldn't load pickup availability
Matching accessories
Matching pins and mating connectors for this connection.
Mating connector with pins
FMS connector green FEMALE 12 Pos incl. 12 pins€9,24 EUR€7,70 EUR each
incl. 20% VAT excl. VAT✔ For professional applications – ✔ Directly from the specialist – ✔ Support available
Not sure whether this product is right for you? 👉 Contact us – we’ll help you quickly and professionally. Benefit from more than 20 years of experience in the tachograph and telematics industry.
Volume discount
Order more & save
Quantity
Discount
Unit price
from 25 units
-5%
Save
€1,79€1,49
/ unit
€34,09€28,41
from 50 units
-10%
Save
€3,59€2,99
/ unit
€32,29€26,91
The applicable volume discount is applied automatically based on the ordered quantity. · incl. 20% VAT excl. VAT
In stock – ready to ship
Up to 10% volume discount
✓ Shipping from Austria
✓ 20+ years of experience
✓ Technical support
✓ Secure payment
Product details
This FMS Y-splitter lets you distribute FMS signals to two devices, for example a tachograph, telematics unit or an additional FMS interface. It is ideal for fleets that want to retrofit additional telematics systems without modifying the existing vehicle wiring harness.
Typical applications
- Parallel connection of tachograph and telematics system
- Retrofitting FMS-based telematics solutions in trucks or buses
- Expanding existing installations with additional data devices
- Suitable for fleet operators, workshops and telematics integrators
Compatibility & vehicles
The Y-splitter is designed for the standardized FMS connector used in commercial vehicles and can be used in many truck and bus models with an FMS interface. Please check the FMS interface available in the vehicle or contact our support team if you are unsure.
Technical data

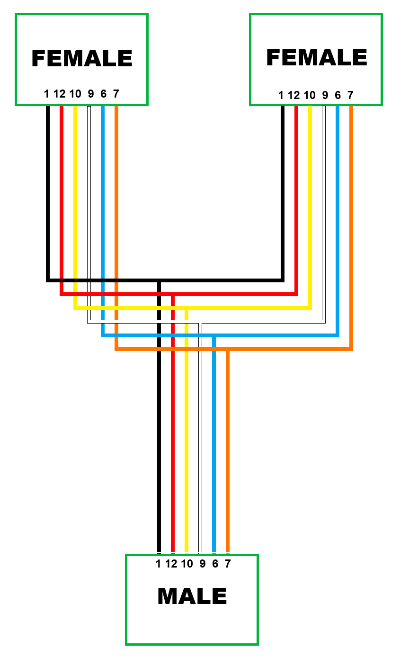

- FMS Y-adapter: 1x Male connector to 2x Female connectors
- Cable length: approx. 20 cm
- Pin assignment: straight-through 1:1, with no signal modification
- For connecting multiple telematics systems in parallel to one FMS interface
- Robust automotive-grade design for use in commercial vehicles
Installation & connection
The Y-splitter connects directly to the existing FMS interface in the vehicle. The existing connector plugs into the Y-splitter, while the two outputs connect to the tachograph, telematics device or other data devices. No cutting or soldering of the vehicle wiring harness is required, making installation clean, quick and reversible.
Please follow the installation instructions provided by your telematics or vehicle manufacturer. Installation must only be carried out by qualified, trained and authorized personnel.
Benefits of the FMS Y-splitter
- Easy retrofit of additional systems without extensive rewiring
- Reduced installation effort and lower risk of wiring errors
- Clean professional solution instead of improvised adapters
- Ideal for fleets using multiple telematics or data systems
For larger order quantities or recurring requirements, contact our support team at office@purerdl.com and we will be happy to prepare an individual quotation.
